| BSA |
| 来源:JETSTAR |Carbide Burrs|Inserts|Threading|Indexable|Milling|Endmills|Milling | 发布时间:2012/4/26 16:43:19 | 浏览次数： |
|
 |

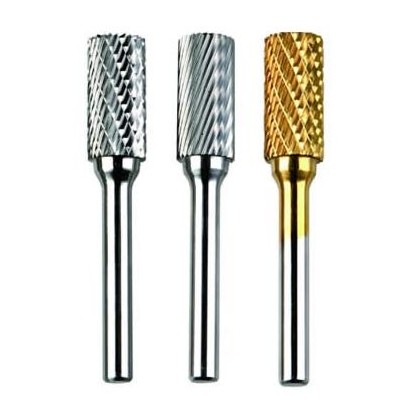

Shape A-Cylindrical
Inch Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SA-11 |
1/8" |
1/2" |
1/4" |
| SA-12 |
1/8" |
5/8" |
1/4" |
| SA-13 |
5/32" |
5/8" |
1/4" |
| SA-14 |
3/16" |
5/8" |
1/4" |
| SA-1 |
1/4" |
5/8" |
1/4" |
| SA-1L |
1/4" |
1" |
1/4" |
| SA-2 |
5/16" |
3/4" |
1/4" |
| SA-3 |
3/8" |
3/4" |
1/4" |
| SA-3L |
3/8" |
1" |
1/4" |
| SA-3X |
3/8" |
1-1/2" |
1/4" |
| SA-4 |
7/16" |
1" |
1/4" |
| SA-5 |
1/2" |
1" |
1/4" |
| SA-6 |
5/8" |
1" |
1/4" |
| SA-7 |
3/4" |
1" |
1/4" |
| SA-15 |
3/4" |
1/2" |
1/4" |
| SA-16 |
3/4" |
3/4" |
1/4" |
| SA-8 |
7/8" |
1" |
1/4" |
| SA-9 |
1" |
1" |
1/4" |
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter. |
ISO Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SA-11M |
3 mm |
12 mm |
6 mm |
| SA-12M |
3 mm |
15.8 mm |
6 mm |
| SA-13M |
4 mm |
15.8 mm |
6 mm |
| SA-14M |
5 mm |
15.8 mm |
6 mm |
| SA-1M |
6 mm |
15.8 mm |
6 mm |
| SA-1LM |
6 mm |
25 mm |
6 mm |
| SA-2M |
8 mm |
19 mm |
6 mm |
| SA-3M |
9.5 mm |
19 mm |
6 mm |
| SA-3LM |
9.5 mm |
25 mm |
6 mm |
| SA-3XM |
9.5 mm |
37 mm |
6 mm |
| SA-4M |
11 mm |
25 mm |
6 mm |
| SA-5M |
12.7 mm |
25 mm |
6 mm |
| SA-6M |
16 mm |
25 mm |
6 mm |
| SA-7M |
19 mm |
25 mm |
6 mm |
| SA-15M |
19 mm |
12 mm |
6 mm |
| SA-16M |
19 mm |
19 mm |
6 mm |
| SA-8M |
22.3 mm |
25 mm |
6 mm |
| SA-9M |
25 mm |
25 mm |
6 mm |
6 mm shanks are supplied standard unless ordered otherwise.
8mm shanks are recommended on all Burs larger than 12mm diameter.
|
|
