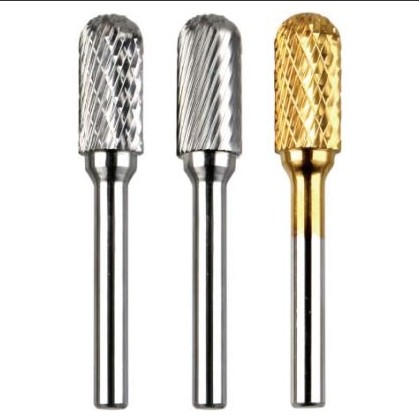

SC Carbide Burrs
Cylindrical Ball with radius-Inch Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SC-11 |
1/8" |
1/2" |
1/4" |
| SC-12 |
1/8" |
5/8" |
1/4" |
| SC-13 |
5/32" |
5/8" |
1/4" |
| SC-14 |
3/16" |
5/8" |
1/4" |
| SC-1 |
1/4" |
5/8" |
1/4" |
| SC-1L |
1/4" |
1" |
1/4" |
| SC-2 |
5/16" |
3/4" |
1/4" |
| SC-3 |
3/8" |
3/4" |
1/4" |
| SC-3L |
3/8" |
1" |
1/4" |
| SC-3X |
3/8" |
1-1/2" |
1/4" |
| SC-4 |
7/16" |
1" |
1/4" |
| SC-5 |
1/2" |
1" |
1/4" |
| SC-6 |
5/8" |
1" |
1/4" |
| SC-7 |
3/4" |
1" |
1/4" |
| SC-15 |
3/4" |
1/2" |
1/4" |
| SC-16 |
3/4" |
3/4" |
1/4" |
| SC-8 |
7/8" |
1" |
1/4" |
| SC-9 |
1" |
1" |
1/4" |
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter. |
Cylindrical Ball with radius-ISO Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SC-11M |
3 mm |
12 mm |
6 mm |
| SC-12M |
3 mm |
15.8 mm |
6 mm |
| SC-13M |
4 mm |
15.8 mm |
6 mm |
| SC-14M |
5 mm |
15.8 mm |
6 mm |
| SC-1M |
6 mm |
15.8 mm |
6 mm |
| SC-1LM |
6 mm |
25 mm |
6 mm |
| SC-2M |
8 mm |
19 mm |
6 mm |
| SC-3M |
9.5 mm |
19 mm |
6 mm |
| SC-3LM |
9.5 mm |
25 mm |
6 mm |
| SC-3XM |
9.5 mm |
37 mm |
6 mm |
| SC-4M |
11 mm |
25 mm |
6 mm |
| SC-5M |
12.7 mm |
25 mm |
6 mm |
| SC-6M |
16 mm |
25 mm |
6 mm |
| SC-7M |
19 mm |
25 mm |
6 mm |
| SC-15M |
19 mm |
12 mm |
6 mm |
| SC-16M |
19 mm |
19 mm |
6 mm |
| SC-8M |
22.3 mm |
25 mm |
6 mm |
| SC-9M |
25 mm |
25 mm |
6 mm |
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter.
|
|
