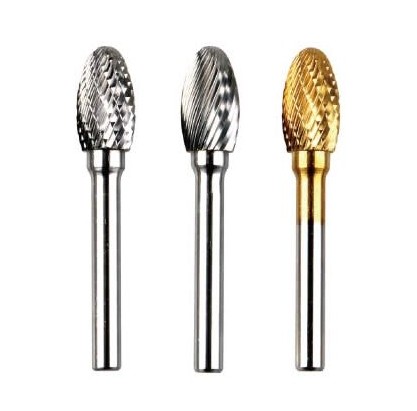

| SE Carbide Burrs
Oval Shapne-Inch Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SE-11 |
3/16" |
5/16" |
1/4" |
| SE-1 |
1/4" |
3/8" |
1/4" |
| SE-3 |
3/8" |
5/8" |
1/4" |
| SE-5 |
1/2" |
7/8" |
1/4" |
| SE-6 |
5/8" |
1" |
1/4" |
| SE-7 |
3/4" |
1" |
1/4" |
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter. |
Oval Shapne-ISO Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SE-11M |
4.7 mm |
7.9 mm |
6 mm |
| SE-1M |
6 mm |
9.5 mm |
6 mm |
| SE-3M |
9.5 mm |
16 mm |
6 mm |
| SE-5M |
12.7 mm |
22 mm |
6 mm |
| SE-6M |
16 mm |
25 mm |
6 mm |
| SE-7M |
19 mm |
25 mm |
6 mm |
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks recommended for Burs larger than 12 mm diameter. |
|
