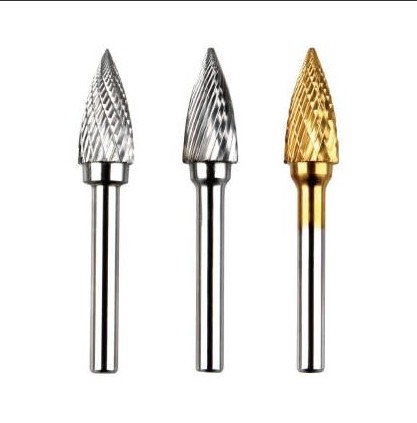

| SG Carbide Burrs
Pointed Tree Shape-Inch Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SG-1 |
1/4" |
5/8" |
1/4" |
| SG-2 |
5/16" |
3/4" |
1/4" |
| SG-3 |
3/8" |
3/4" |
1/4" |
| SG-5 |
1/2" |
1" |
1/4" |
| SG-13 |
1/2" |
3/4" |
1/4" |
| SG-6 |
5/8" |
1" |
1/4" |
| SG-7 |
3/4" |
1" |
1/4" |
| SG-14 |
3/4 " |
1-1/4" |
1/4 " |
| SG-15 |
3/4" |
1-1/2" |
1/4" |
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter. |
Pointed Tree Shape-ISO Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SG-1M |
6 mm |
16 mm |
6 mm |
| SG-2M |
8 mm |
19 mm |
6 mm |
| SG-3M |
9.5 mm |
19 mm |
6 mm |
| SG-5M |
12.7 mm |
25 mm |
6 mm |
| SG-13M |
12.7 mm |
19 mm |
6 mm |
| SG-6M |
16 mm |
25 mm |
6 mm |
| SG-7M |
19 mm |
25 mm |
6 mm |
SG-14  |
|
|
|
| SG-15M |
19 mm |
38 mm |
6 mm |
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter.
|
|
