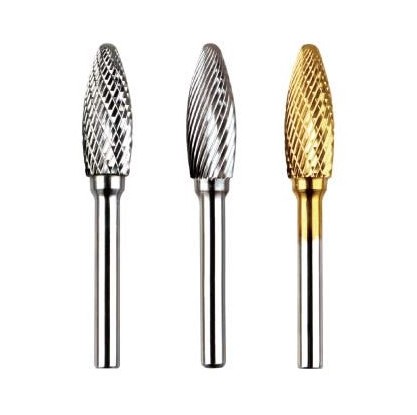

| SH Carbide Burrs
Flame Shape-Inch Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SH-1 |
1/4" |
5/8" |
1/4" |
| SH-2 |
5/16" |
3/4" |
1/4" |
| SH-5 |
1/2" |
1-1/4" |
1/4" |
| SH-6 |
5/8" |
1-7/16" |
1/4" |
| SH-7 |
3/4" |
1-5/8" |
1/4" |
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter. |
Flame Shape-ISO Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SH-1M |
6 mm |
16 mm |
6 mm |
| SH-2M |
8 mm |
19 mm |
6 mm |
| SH-5M |
12.7 mm |
32 mm |
6 mm |
| SH-6M |
16 mm |
36 mm |
6 mm |
| SH-7M |
19 mm |
41 mm |
6 mm |
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter. |
|
