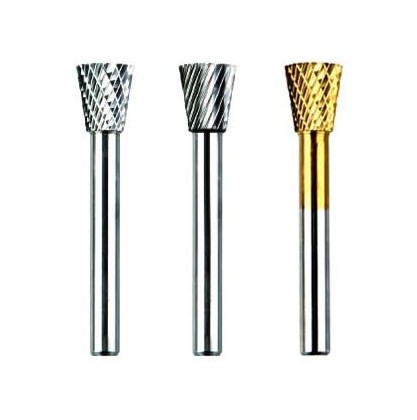

| SN Carbide Burrs
Inverted Cone Shape-Inch Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA. |
INCLUDED ABGLE |
| SN-1 |
1/4" |
5/16" |
1/4" |
10° |
| SN-2 |
3/8" |
3/8" |
1/4" |
13° |
| SN-4 |
1/2" |
1/2" |
1/4" |
28° |
| SN-6 |
5/8" |
3/4" |
1/4" |
18° |
| SN-7 |
3/4" |
5/8" |
1/4" |
30° |
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter. |
Inverted Cone Shape-ISO Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
INCLUDED ABGLE |
| SN-1M |
6 mm |
8 mm |
10° |
| SN-2M |
9.5 mm |
9.5 mm |
13° |
| SN-4M |
12.7 mm |
12.7 mm |
28° |
| SN-6M |
16 mm |
19 mm |
18° |
| SN-7M |
19 mm |
16 mm |
30° |
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter. |
|
