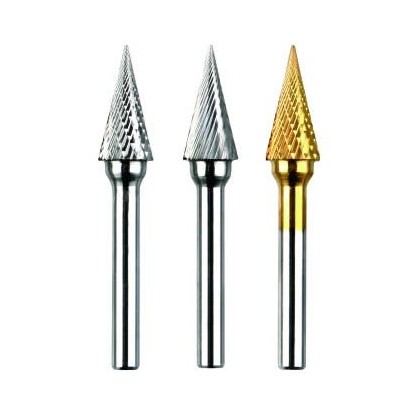

| SM Carbide Burrs
Cone Shape-Inch Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA. |
INCLUDED ABGLE |
| SM-1 |
1/4" |
1/2" |
1/4" |
22° |
| SM-2 |
1/4" |
3/4" |
1/4" |
14° |
| SM-3 |
1/4" |
1" |
1/4" |
10° |
| SM-4 |
3/8" |
5/8" |
1/4" |
28° |
| SM-5 |
1/2" |
7/8" |
1/4" |
28° |
| SM-6 |
5/8" |
1" |
1/4" |
31° |
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter. |
Cone Shape-ISO Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
INCLUDED ABGLE |
| SM-1M |
6 mm |
12.7 mm |
22° |
| SM-2M |
6 mm |
19 mm |
14° |
| SM-3M |
6 mm |
25 mm |
10° |
| SM-4M |
9.5 mm |
16 mm |
28° |
| SM-5M |
12.7 mm |
22 mm |
28° |
| SM-6M |
16 mm |
25 mm |
31° |
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter. |
|
