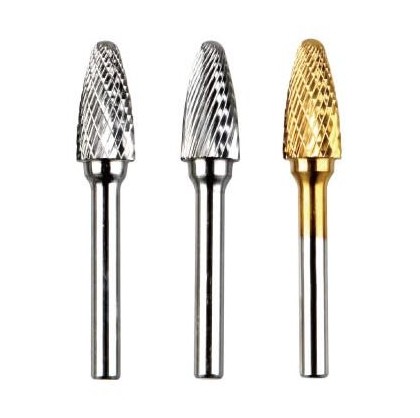

| SF Carbide Burrs
Round Nose Tree Shape-Inch Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SF-11 |
1/8" |
1/2" |
1/4" |
| SF-1 |
1/4" |
5/8" |
1/4" |
| SF-3 |
3/8" |
3/4" |
1/4" |
| SF-4 |
7/16" |
1" |
1/4" |
| SF-5 |
1/2" |
1" |
1/4" |
| SF-13 |
1/2" |
3/4" |
1/4" |
| SF-6 |
5/8" |
1" |
1/4" |
| SF-7 |
3/4" |
1" |
1/4" |
| SF-14 |
3/4" |
1-1/4" |
1/4" |
| SF-15 |
3/4" |
1-1/2" |
1/4" |
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter.
|
Round Nose Tree Shape-ISO Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SF-11M |
3 mm |
12.7 mm |
6 mm |
| SF-1M |
6 mm |
16 mm |
6 mm |
| SF-3M |
9.5 mm |
19 mm |
6 mm |
| SF-4M |
11 mm |
25 mm |
6 mm |
| SF-5M |
12.7 mm |
25 mm |
6 mm |
| SF-13M |
12.7 mm |
19 mm |
6 mm |
| SF-6M |
16 mm |
25 mm |
6 mm |
| SF-7M |
19 mm |
25 mm |
6 mm |
| SF-14M |
19 mm |
32 mm |
6 mm |
| SF-15M |
19 mm |
38 mm |
6 mm |
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter.
|
|
