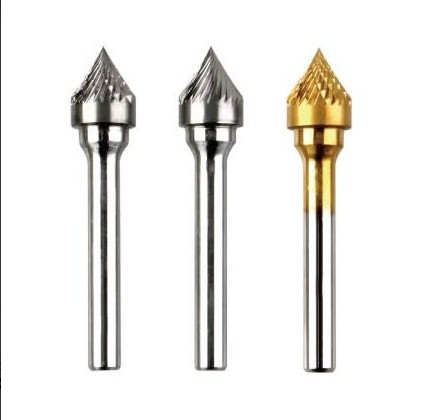

| SJ Carbide Burrs
60° Cone Shape-Inch Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SJ-1 |
1/4" |
3/16" |
1/4" |
| SJ-3 |
3/8" |
5/16" |
1/4" |
| SJ-5 |
1/2" |
7/16" |
1/4" |
| SJ-6 |
5/8" |
9/16" |
1/4" |
| SJ-7 |
3/4" |
11/16" |
1/4" |
| SJ-9 |
1" |
15/16" |
1/4" |
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter. |
60° Cone Shape-ISO Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SJ-1M |
6 mm |
4 mm |
6 mm |
| SJ-3M |
9.5 mm |
8 mm |
6 mm |
| SJ-5M |
12.7 mm |
11 mm |
6 mm |
| SJ-6M |
16 mm |
14.5 mm |
6 mm |
| SJ-7M |
19 mm |
17.5 mm |
6 mm |
| SJ-9M |
25 mm |
24.5 mm |
6 mm |
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter.
|
|
