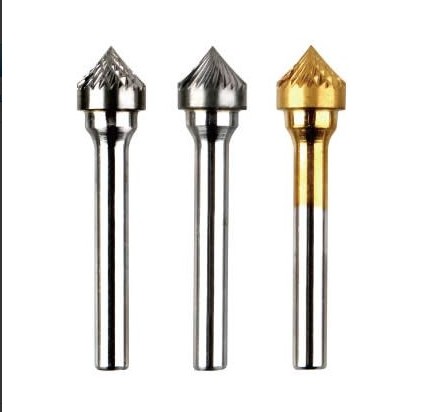

| SK Carbide Burrs
90° Cone Shape-Inch Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SK-1 |
1/4" |
1/8" |
1/4" |
| SK-3 |
3/8" |
3/16" |
1/4" |
| SK-5 |
1/2" |
1/4" |
1/4" |
| SK-6 |
5/8" |
5/16" |
1/4" |
| SK-7 |
3/4" |
3/8" |
1/4" |
| SK-9 |
1" |
1/2" |
1/4" |
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter. |
90° Cone Shape-ISO Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SK-1M |
6 mm |
3 mm |
6 mm |
| SK-3M |
9.5 mm |
4.7 mm |
6 mm |
| SK-5M |
12.7 mm |
6.3 mm |
6 mm |
| SK-6M |
16 mm |
8 mm |
6 mm |
| SK-7M |
19 mm |
9.5 mm |
6 mm |
| SK-9M |
25 mm |
12.7 mm |
6 mm |
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter. |
|
