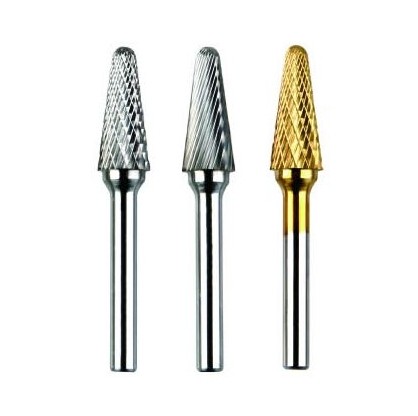

| SL Carbide Burrs
Taper Shape-Inch Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SL-1 |
1/4" |
3/16" |
1/4" |
| SL-2 |
5/16" |
7/8" |
1/4" |
| SL-3 |
3/8" |
1-1/16" |
1/4" |
| SL-4 |
1/2" |
1-1/8" |
1/4" |
| SL-5 |
5/8" |
1-3/16" |
1/4" |
| SL-6 |
5/8" |
1-5/16" |
1/4" |
| SL-7 |
3/4" |
1-1/2" |
1/4" |
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter. |
Taper Shape-ISO Sizes
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SL-1M |
6 mm |
16 mm |
6 mm |
| SL-2M |
8 mm |
22 mm |
6 mm |
| SL-3M |
9.5 mm |
27 mm |
6 mm |
| SL-4M |
12.7 mm |
28 mm |
6 mm |
| SL-5M |
16 mm |
30 mm |
6 mm |
| SL-6M |
15.9 mm |
33 mm |
6 mm |
| SL-7M |
19 mm |
38 mm |
6 mm |
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter.
|
|
